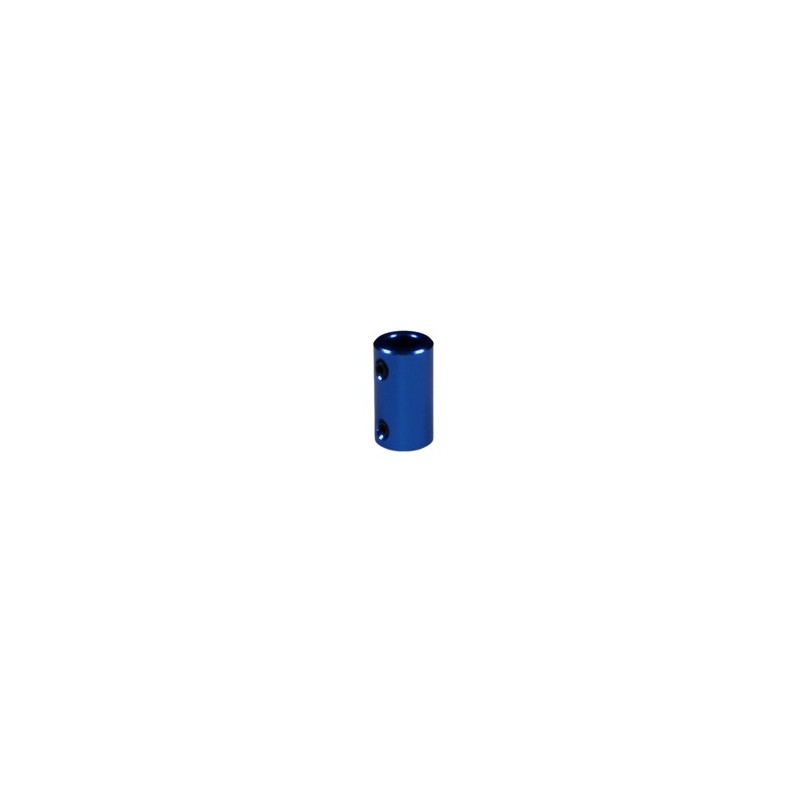

5x8mm rigid coupler

The 5x8mm rigid coupling is an essential mechanical component for ensuring a robust, rigid connection between two shafts or axes, particularly in applications where stability and precision are crucial.

Key features

• Coupling diameter: The coupler is designed to accommodate both 5mm and 8mm diameter shafts, offering flexibility in assembly configurations.
• Dimensions: Typical coupler dimensions are 14mm outside diameter and 25mm height.
• Material: Made from anodized aluminum alloy, this coupler offers exceptional torsional strength and rigidity, as well as reduced vibration.
• Weight: The coupler typically weighs around 17 grams.

Applications

• 3D printers: These couplers are frequently used in 3D printers, especially for the Z axis, where a rigid and precise connection is required to ensure stable and accurate printing.
• CNC and engraving machines: In CNC and engraving machines, 5x8mm rigid couplings are used to connect motors to motion axes, guaranteeing smooth, precise transmission.
• Robotics and Automation: In robotic systems and automation applications, these couplings are essential to ensure solid, reliable connections between the various mechanical components.

Project examples

• 3D printer assembly: When building or repairing 3D printers, these couplings are used to connect the step-by-step motors to the motion axes, ensuring optimum stability and precision.
• CNC Machine Design: In the design and assembly of CNC machines, 5x8mm rigid couplings are used to guarantee reliable and precise mechanical transmission between motors and cutting tools.
• Robotics projects: In robotics projects, these couplings are used to connect actuators to members or effectors, ensuring a solid, reliable connection.
