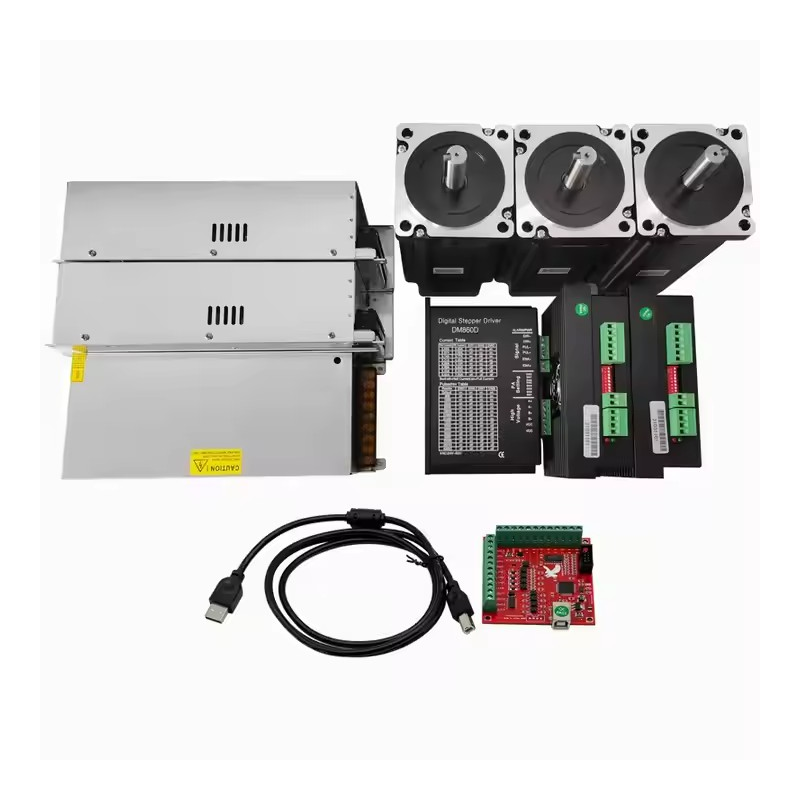

CNC hybrid kit DM860 12N.m 3 axes with 3 Nema 34 stepper motors, 3 drivers, 3 power supplies and a control

For a robust 3-axis CNC kit featuring high-torque stepper motors (4N, 4.5N, 8N, 12N), compatible drivers (DM860A/DM860D), and controller/power solutions, it's important to select components that offer reliability, precise control, and are well-matched to your motor specifications. Here are some standout options that align with your requirements and integrate seamlessly for CNC applications.

Step Angle 1.8° Temperature Rise 80°C Max Ambient Temperature -20°C to +50°C Insulation Resistance 100 MΩ Min (500 VDC) Dielectric Strength 500 VAC for 1 minute Shaft Radial Play 0.02 mm Max (under 450g load) Shaft Axial Play 0.08 mm Max (under 450g load) Max. Radial Force 220 N (at 20 mm from flange) Max. Axial Force 60 N

3 Axis NEMA 34 Stepper Motor CNC Router

This controller kit is well-suited for 3-axis CNC setups and is compatible with stepper drivers like the DM860A/DM860D. It provides reliable signal processing and control, essential for accurate multi-axis movement. The kit is also known for its user-friendly interface and can be integrated with shielded cables of various lengths (3m, 5m, 8m) to minimize electrical noise, which is crucial for high-power stepper systems.

DM860A Stepper Motor Driver

The DM860A is a high-performance digital stepper driver that matches your technical requirements. It supports a wide voltage range (24-80VDC or 20-80VAC), high peak currents (up to 7.2A), and advanced microstepping (up to 1/256 microsteps), making it ideal for high-torque motors. Its DSP and PID-based control ensures low noise, minimal vibration, and high precision—key for CNC machining. The DM860A also features robust protection mechanisms and is compatible with both 2-phase and 4-phase stepper motors.
