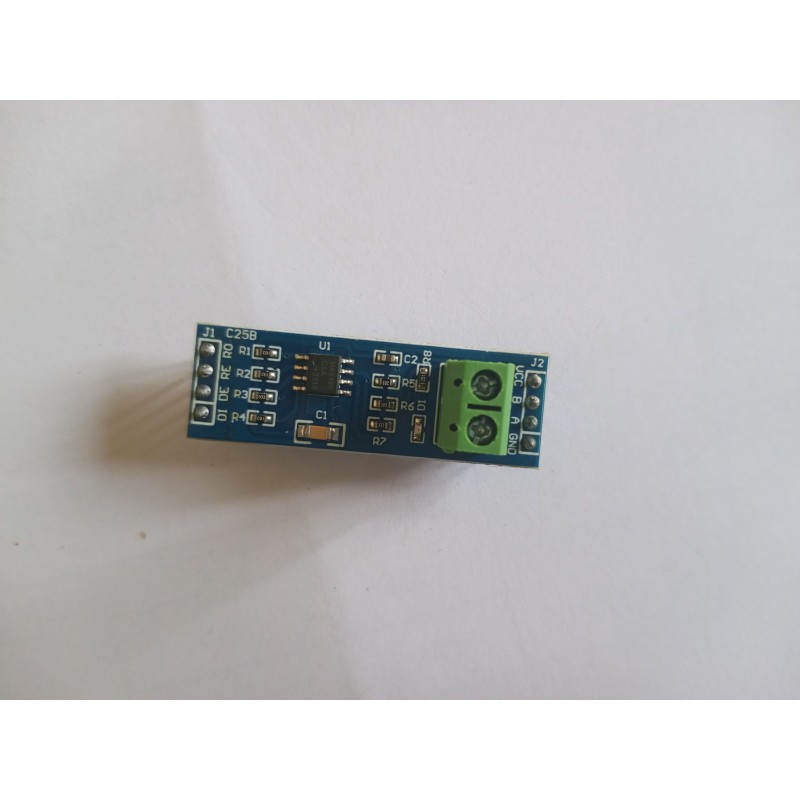

TTL to RS485 Module

The TTL to RS485 Module is a serial interface converter that transforms TTL/UART signals into RS485 signals and vice versa. It provides stable, reliable, and long-distance communication with strong resistance to electromagnetic interference. This module is ideal for automation systems, industrial projects, home automation, and electronic setups that require robust serial communication.

It typically operates at 5V, supports data rates up to 2.5 Mbps, and can transmit over distances of up to 1200 meters depending on the installation and environment. Its compact size and simple pin layout make it easy to integrate into projects using Arduino, ESP32, Raspberry Pi, and other microcontrollers. The module is also suitable for multipoint RS485 networks, making it practical for setups where several devices need to share the same bus.

Project examples:

• Industrial automation and equipment monitoring.

• Long-distance communication between two Arduino boards.

• Connecting sensors and actuators in a home automation system.

• Data transmission on Modbus or RS485 bus networks.

• Control of machines, meters, or embedded modules in noisy environments.

Areas of use:

• Industry and automation.

• Home automation.

• Robotics.

• Telemetry and supervision.

• Educational and electronic prototyping projects.
