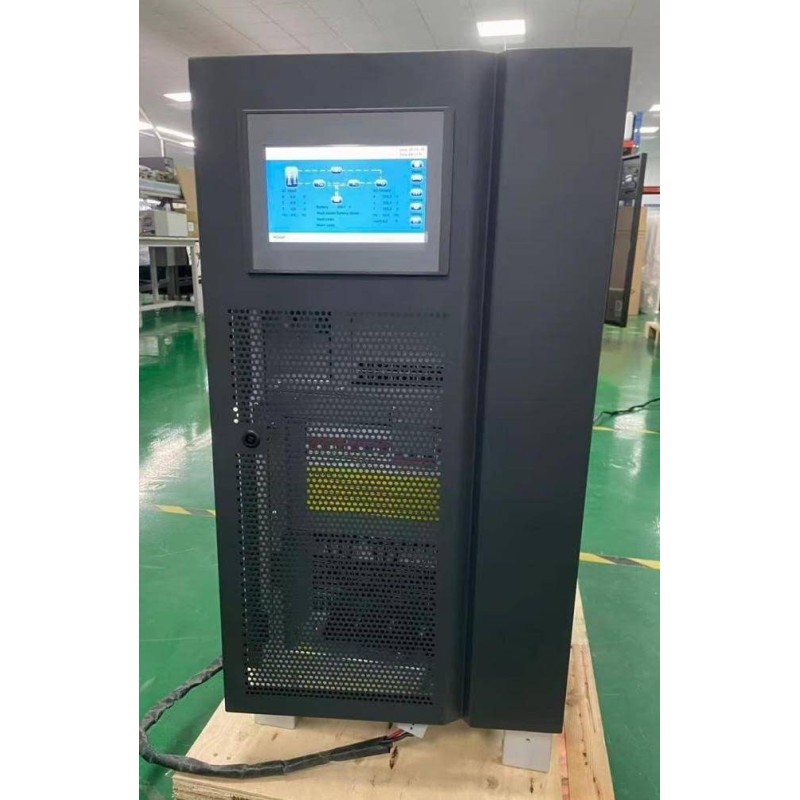

FSP 20KVA Tri-Tri Online UPS for elevators and sensitive equipment

The FSP 20KVA Tri-Tri Online UPS is a high-end power protection solution designed to deliver stable, clean, and uninterrupted electricity to highly sensitive equipment. Thanks to its online double-conversion technology, it ensures maximum continuity for elevators, servers, medical devices, security systems, and critical industrial installations.

Technical Features:

• Rated power: 20KVA / 16KW.

• Input and output: three-phase 3 x 380/400V, 3Ph + N.

• Rated frequency: 50Hz/60Hz.

• Input voltage range: 165V to 280V Ph-N, 285V to 485V Ph-Ph.

• Input frequency range: 46Hz to 54Hz for 50Hz, 56Hz to 64Hz for 60Hz.

• Output waveform: sinusoidal.

• Rated output voltage: 3 x 380/400V, 3Ph + N.

• Output THD: 2% for R load, 5% for RCD load.

• Overload capacity: 110% to 150% for 10 min, 150% to 160% for 60 sec, up to 200% for 200 ms.

• Efficiency: about 90%.

• Transfer time: 0 ms in synchronized mode.

• Cooling system: forced air cooling.

• Operating temperature: 0 to 55 °C.

• Communication and protection: RS232, USB, RS485, intelligent slot, dry contacts, EPO, and parallel operation support for up to 4 units.

Application Areas:

• Elevators and lift systems.

• Server rooms and data centers.

• Hospitals, laboratories, and sensitive medical equipment.

• Banks, offices, and payment systems.

• CCTV, access control, and security systems.

• Industrial sites, workshops, and automated production lines.

Project Examples:

• Backup power protection for an office building elevator.

• Secure power supply for a server room to prevent service interruption.

• Emergency power solution for a medical center with sensitive devices.

• Power stabilization for a bank or telecom agency.

• Installation in a factory to protect PLCs, drives, and electronic controls.
