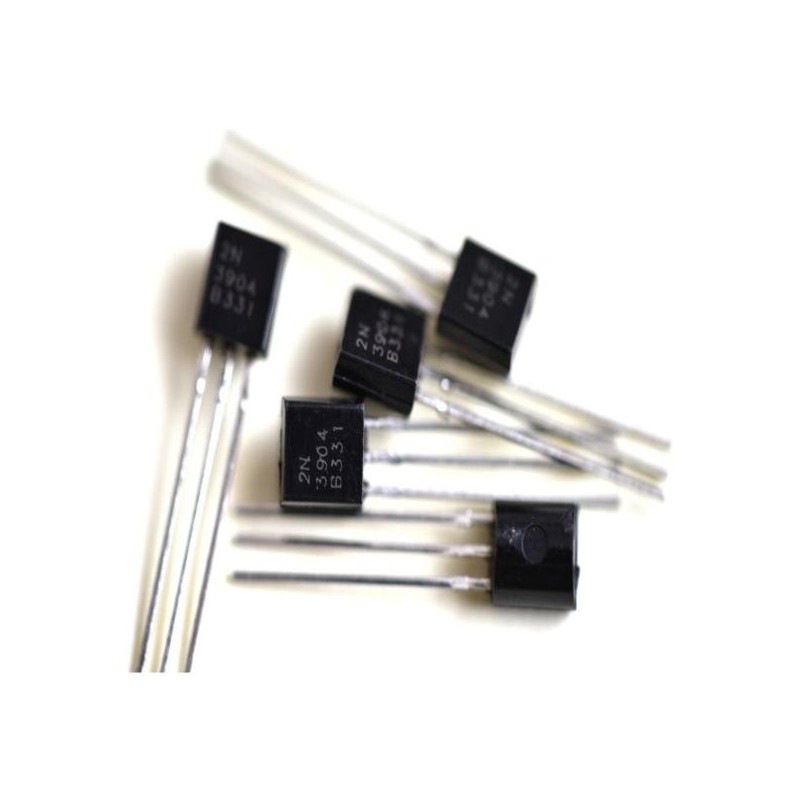

NPN Transistor - 2N2222A,2N3904,2N3906,2N5401,C945,A1015,C1815,S8050,S8550,BC327

NPN transistor is a type of bipolar junction transistor (BJT) widely used in electronic circuits for amplification and switching. It consists of three layers of semiconductor materials: two N-type (negative) layers flanking a P-type (positive) layer. This configuration allows electrons, which are the main charge carriers, to flow easily from the collector to the emitter when a current is applied to the base.

Main Features

• Structure: Composed of three regions: emitter (N), base (P), and collector (N).
• Operation: When current flows through the base, it allows a much larger current to flow between the collector and emitter.

Applications:

• Weak signal amplification
• Switching in digital and analog circuits
• Use in oscillation circuits and audio amplifiers

Advantages

• High efficiency in signal amplification
• Ability to control high currents with low base current
• Used in a variety of applications ranging from consumer devices to industrial systems

The NPN transistor is essential in modern circuit design, allowing engineers and hobbyists to implement efficient solutions for various electronic applications.
