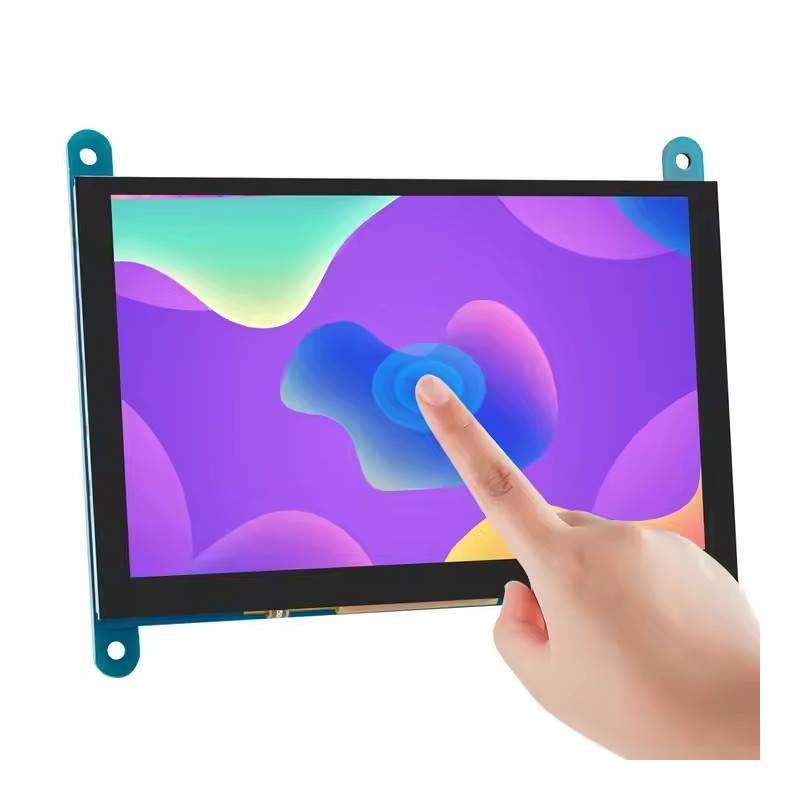

5-inch LCD touchscreen Raspberry Pi 800*480 display capacitive HDM-I monitor for Windows 10/8/7 Raspberry Pi touchscreen

Standard 5” display, 800x480 resolution, maximum HDMII 1920x1080 resolution supported

Capacitive touchscreen, support for up to 5 points

Integrated OSD menu setting function (adjustable contrast/brightness/saturation, etc.)

Compatible with consumer mini PCs such as the Raspberry Pi, Black BB, Banana Pi

It can also be used as a general-purpose HDMII display, connecting computers, TV boxes, Microsoft Xbox360, SONY PS4, Nintendo Switch and so on

Used as a Raspberry Pi display that supports raspabian, Ubuntu, Kodi, Win10 IOT, one-touch, free player

Works as a PC monitor, supports Win7, Win8, Win10 5-point touch system (XP and older version system: one-point touch), free player

HDMII audio output support

CE, RoHS certification

Parameter:

Resolution: 800 × 480 (dots)

Touch: 5-point capacitive touch

Audio output: support

Dimensions: 121.11*95.24 (mm)

Package size: 153*135*51 (mm)

Power dissipation: 0.30A * 5V

Description of equipment:

1. Earphone: 3.5mm audio output interface

2 & 3 Touch: USB connector (for power and touch output, the functions of both are the same, can simply use one of them)

4. Display: HDMII interface (for connecting motherboard and LCD monitor)

5. Power: switch display and backlight on or off to save power consumption

6. Return: return (valid only in OSD settings menu)

7. Right/down: Right/down direction (backlight shortcut key)

8. Left/up: Left/up direction (backlight shortcut key)

9. Menu: Open the OSD / Select key (valid only in the settings menu).
