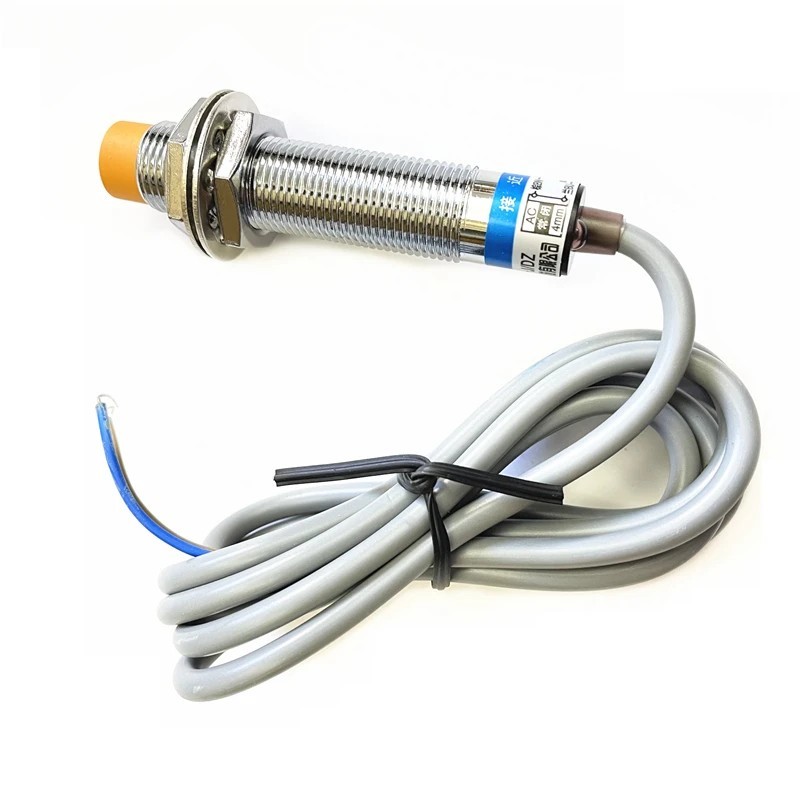

Proximity inductance sensor HNQD|LJA18M-10N1

The HNQD LJA18M-10N1 proximity switch inductance sensor is a high-performance non-contact sensing device designed for industrial automation and control applications.

 Key features

- Type : Inductive sensor

- Detection distance: 10 mm

- Supply voltage: 6-36V DC

- Output: NPN NO (Normally Open)

- Switching frequency: 300 Hz

- Protection rating: IP67 (water and dust resistant)

- Operating temperature range : -25°C to 70°C

- Housing material: Nickel-plated brass

- Dimensions: M18 x 1 mm (thread)

 Applications

This proximity sensor is used in various industrial sectors:

- Industrial automation

- Robotics

- Production and assembly lines

- Machine tools

- Conveyors and sorting systems

- Handling equipment

 Examples of projects

The LJA18M-10N1 HNQD sensor is commonly used in projects such as :

- Position detection of metal parts on an assembly line

- Counting metal objects on a conveyor belt

- Presence/absence control in packaging systems

- End-of-stroke detection in positioning systems

- Rotation monitoring of metal shafts

- Proximity detection in industrial safety applications

This sensor offers a reliable, accurate solution for non-contact detection of metal objects in demanding industrial environments. Its robustness and resistance to harsh conditions make it the preferred choice for applications requiring reliable, long-lasting detection.
