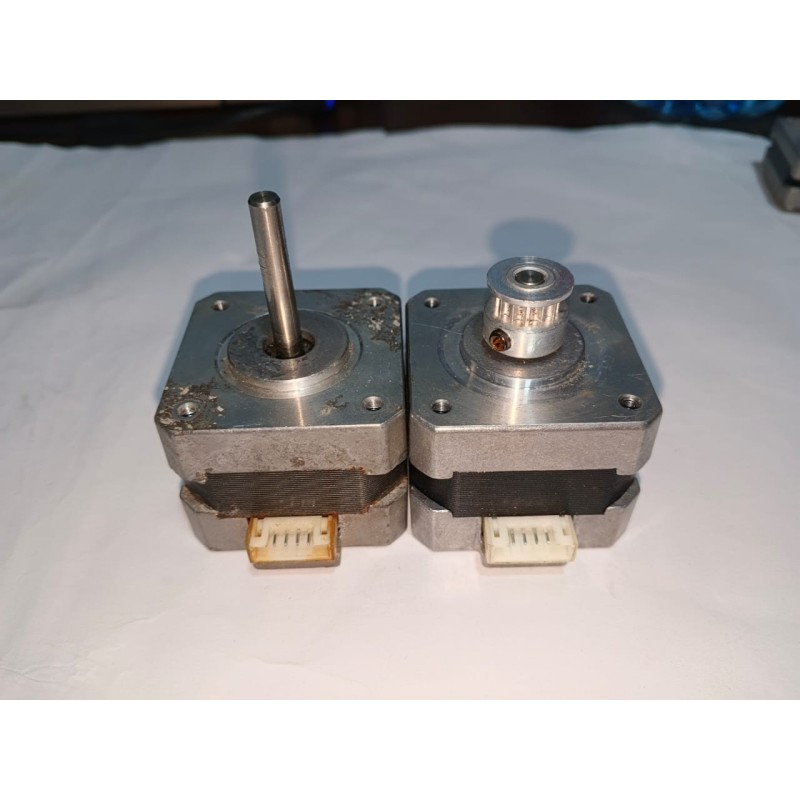

The KH MOTOR 42BYGH101-1-15 is a NEMA 17 hybrid stepper motor designed for applications requiring precise, repeatable, electronically controlled positioning. With a 1.8° step angle, it provides 200 full steps per revolution. When paired with a compatible driver, it can also operate in microstepping mode for smoother and more accurate motion.

This motor is ideal for automated systems, light-duty CNC machines, 3D printers, robotics, and linear motion mechanisms. The 42BYGH101 series is generally built with a 42 mm square frame and an approximately 40 mm motor body length. Available series specifications indicate a nominal voltage of around 2.5 V, a current rating of 1.7 A per phase, approximately 1.5 Ω phase resistance, and a holding torque close to 0.35 N·m.

Main technical specifications:

Type: Hybrid bipolar stepper motor

Frame size: NEMA 17 / approximately 42 × 42 mm front face

Step angle: 1.8° per step, 200 steps per revolution

Number of phases: 2 phases

Rated current: approximately 1.7 A per phase

Rated voltage: approximately 2.5 V

Phase resistance: approximately 1.5 Ω

Phase inductance: approximately 3.2 mH

Holding torque: approximately 0.35 N·m / 35 N·cm

Motor body length: approximately 40 mm

Insulation class: typically Class B

Operating temperature: typically from -20 °C to +50 °C, depending on operating conditions and production series.

Applications:

3D printers and rapid-prototyping machines

CNC engraving, light cutting, and PCB milling machines

Educational robotics, robotic arms, and mobile platforms

Packaging, labelling, dispensing, and vending equipment

Light industrial automation systems

Dosing machines, pumps, and motorized valves

Linear actuators, motorized slides, and gantry systems

Project examples:

Driving the X, Y, or Z axis of a 3D printer.

Building a compact CNC machine controlled by Arduino, GRBL, or Mach3.

Designing an automated drawing plotter or a light laser engraver.

Building a programmable robotic arm.

Creating a vending machine with a precision conveyor mechanism.

Automating a door, shutter, curtain, or small gate system.

For proper operation, use this motor with a compatible stepper motor driver such as an A4988, DRV8825, TMC2208/TMC2209, or TB6600, chosen according to the controller, power supply, and required load.
