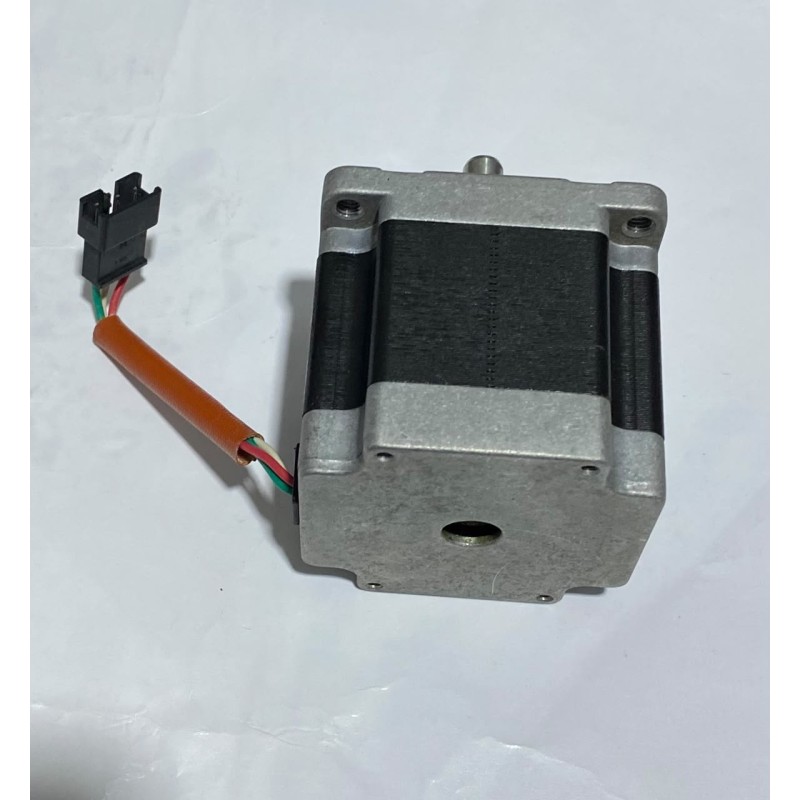

MOONS’ Stepping Motor 24HC2307-01 – Ref. 60167919

The MOONS’ 24HC2307-01 is a hybrid stepping motor designed for applications that require accurate control of rotational position, speed, and motion. It is suitable for automation systems, mechatronics projects, professional equipment, and motorized mechanisms where repeatability and reliable positioning are important.

This reference is notably identified as a Pan/Tilt motor in certain professional lighting equipment, making it appropriate for controlled horizontal and vertical orientation mechanisms.

Technical Features

• Brand: MOONS’

• Type: Hybrid stepping motor

• Manufacturer part number: 24HC2307-01

• Product reference: 60167919

• Main function: Controlled rotary motion and precise positioning

• Technology: Permanent-magnet hybrid stepper motor

• Control method: Requires a compatible stepper motor driver/controller

• Motion modes: Full-step, half-step, or microstepping, depending on the driver used

• Typical functions: Positioning, axis movement, orientation systems, and precision drive applications

• Reference date: 12/04/2025

Applications

The MOONS’ 24HC2307-01 stepping motor can be used in:

• Industrial automation systems and special-purpose machines

• Precision axis movement and positioning equipment

• Professional lighting equipment, including moving heads, Pan/Tilt mechanisms, and motorized projectors

• Light CNC machines, engravers, cutters, and guided-motion systems

• Robotics, 3D printers, and mechatronics prototypes

• Vending machines and self-service equipment

• Laboratory devices, measuring instruments, and controlled mechanical systems

• Motorized adjustment, opening, dosing, and orientation mechanisms

• Arduino, ESP32, Raspberry Pi, and PLC-based automation projects

Project Examples

• DIY moving-head light: Drive the Pan and Tilt axes of an LED spotlight or motorized lighting fixture.

• Automated turntable: Build a rotating platform for product photography, exhibitions, or visual inspection.

• CNC positioning axis: Motorize a carriage, linear mechanism, or fine-adjustment system.

• Motorized camera mount: Create a Pan/Tilt support for a surveillance camera, webcam, or IP camera.

• Robotic arm or mobile robot: Control a joint, rotating platform, miniature conveyor, or gripping mechanism.

• Dosing or filling machine: Drive a lead screw, dispensing system, or calibrated adjustment mechanism.

• Home automation prototype: Build a motorized control system for a small blind, shutter, flap, or adjustable mechanism.

For reliable operation, use a driver matched to the motor’s rated phase current, a properly sized power supply, and limit switches where the mechanism has restricted travel.
